• On sale!

copy of Urban Arrow Family Performance Essential

€4,358.67 Save €600.00

The Urban Arrow Family performance essential is equipped with a 500Wh battery, a chain drive, hydraulic disc brakes and 65 Nm of torque.

Immediately available


Customer service quickly accessible via chat for all your questions


Free shipping from 150 EURO for parcel shipments


14 days to consider and return without questions

  !! Attention!! High amounts for online shopping may be refused by your bank.

Therefore, choose 'Bank transfer' so that you can place your order without errors.

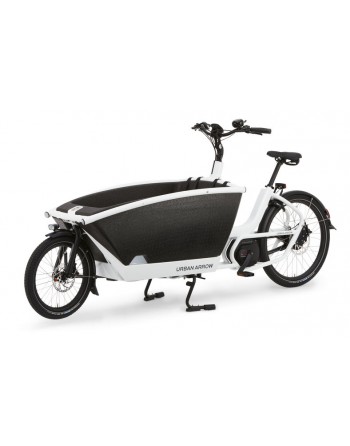

Urban Arrow Family Performance Essential

The range of 100 km is of course always subject to various factors such as the load of the bike, the terrain that is ridden and the weather conditions. The electric support is easily turned on and off by a button on the handlebar. There you can see exactly how full the battery is and you can choose from three modes: low, medium and high. The battery is located under the standard bench and by folding the bench you can easily slide the battery in and out. Charging the battery takes about 4-5 hours. There are all kinds of separate parts to order, such as an extra adapter so that the battery can be charged in 2 places, for example at home and at work. An extra battery can also be ordered.

We almost forgot the cargo bike itself. This is exactly the same as the version without electrical support. The body is made of super light industrial styrofoam called EPP. This EPP is pressed under high pressure and often used in car dashboards and motorcycle helmets. This Urban Arrow electric version weighs 45 pounds and has a NuVinci gear system. This means that you have an infinitely variable gear, so no more switching between 1 and 8, but can completely determine which mode you find comfortable. This Urban Arrow has 2 hand brakes, which ensure that you immediately brake if you want to. They have been extensively tested for E-Bikes and work best, even if you cycle at a higher speed.

The cargo bike is available in 2 colors: black or white. The bike is equipped with a hub dynamo and a bench for 2 children and therefore also with 2 three-point belts. The Urban Arrow bakfiets can be expanded with various accessories, the rain tent is really a luxury solution against cold, wind and rain. You can also order a second bench, which allows 4 children to go along in the bin.

Also very handy is the Maxi Cosi carrier, which makes it easy and safe to take a Maxi Cosi. Besides this carrier, 2 more children can sit on the bench with ease. In that respect the Urban Arrow is comparable to the cargo long versions of most competitors.


  •     Family | Bosch Performance | 500Wh | Deore
  •     Frame (rear) UA4.2, aluminum
  •     Motor Bosch Performance Line Gen 3, 250W
  •     Battery Bosch 500Wh
  •     Display Bosch Intuvia
  •     Rear hub & gears Enviolo Cargo, 36H
  •     Gearbox Enviolo TR - Trekking
  •     Driveline Chain, KMC X1 Silver 102L
  •     Rear sprocket Enviolo 17T flat
  •     Front sprocket Lasco 38T, 4-hole, 104BCD
  •     Chain protector Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo
  •     Rear brake Shimano Deore M6000 (caliper); RT-66 203mm (disc); Elvedes metal pads 6894S
  •     Front brake Shimano Deore M6000 (claw); RT-66 180mm (disc); Elvedes metal pads 6894S
  •     Rear light Spanninga Plateo XE 6V-36V
  •     Front light Spanninga Axendo 40
  •     Front fork UA rigid front fork
  •     Handlebar UA Family handlebar & handlebar holder 2020
  •     Handlebar stem TranzX JD-ST17-2 black 1-1/8 25.4 110mm
  •     Handlebar Ergotec Moon cruiser 25,4 black
  •     Grips Ergon GC10
  •     Pedals C558
  •     Saddle tube Satori Trident 31.6 400mm black
  •     Saddle Selle Royal Rio Plus
  •     Pedal arm Lasco EB05 BNI 170mm
  •     Rear wheel rim Ryde Andra 40 double wall 26" x 1.75; Sapim spokes (13G)
  •     Front wheel rim Ryde Andra 40 double wall 20" x 1.75; Sapim spokes (14G)
  •     Front hub Shimano HB-M525A, 36H
  •     Rear tire Schwalbe Big Ben Plus 55-559
  •     Front tire Schwalbe Big Ben Plus 55-406
  •     Valve type Schrader
  •     Rear fender SKS 65mm 26" matt black
  •     Front fender SKS 65mm 20" matt black
  •     Frame color Black or White
  •     Weight bicycle 51Kg
  •     Overall dimensions L 260cm x W 70cm x H 110cm
  •     Max total weight 275Kg Bike + rider + load

Data sheet

Number of seats
Parking brake
Adjustable handlebar
Load weight
80 kg
Brakes front
Disc brakes
Bicycle lock
35 kg
Rain cover
70 km
